XAML is a declarative UI language; it's most powerful feature is surely data binding. In XAML you can set a converter on any binding. You use this when you need to display data in a format that differs from how it is stored. But you can only set ONE converter. So if you for instance want to convert a date using a FormatConverter and you want to convert the result to uppercase using a UppercaseConverter you are stuck. To solve this problem I have created a ValueConverterGroup class. It is a converter which contains multiple converters, it is a List of IValueConverter objects and it implements the IValueConverter interface. The Convert() method calls the Convert() method of all containing value converters. I haven't implement the ConvertBack() method because I won't be using it.

ValueConverterGroup

using System;
using System.Collections.Generic;
using System.Linq;
using Windows.UI.Xaml;
using Windows.UI.Xaml.Data;

namespace ReflectionIT.Windows8.Converters {

    public class ValueConverterGroup : List<IValueConverter>, IValueConverter {

        public object Convert(object value, Type targetType, object parameter,
                                  string language) {
            return this.Aggregate(value, (current, converter) =>
                current == DependencyProperty.UnsetValue ?
                    current :
                    converter.Convert(current, targetType, parameter, language)
            );
        }

        public object ConvertBack(object value, Type targetType, object parameter,
                                  string language) {
            System.Diagnostics.Debugger.Break(); // Not Implemented
            throw new NotImplementedException();
        }
    }
}

Example

The following sample page contains a DatePicker control and two TextBlock controls. The Text property of the TextBlocks are databound to the Date property of the DatePicker. The first (red) TextBlock uses a FormatConverter to convert the date to dd-MMM-yyyy string. The second (blue) TextBlock uses my ValueConverterGroup to combine a FormatConverter and an UppercaseConverter.

The two converters are static resources which are defined in the Page resources.

<Page x:Class="ConvertersDemo.MainPage"
      xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
      xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
      xmlns:local="using:ConvertersDemo"
      xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
      xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
      xmlns:c="using:ReflectionIT.Windows8.Converters"
      mc:Ignorable="d">


    <Page.Resources>
        <c:FormatConverter x:Key="DateFormat"
                           FormatString="{}{0:dd-MMM-yyyy}" />

        <c:ValueConverterGroup x:Key="UppercaseDateFormat">
            <c:FormatConverter FormatString="{}{0:dd-MMM-yyyy}" />
            <c:UppercaseConverter />
        </c:ValueConverterGroup>
    </Page.Resources>

    <Grid Background="{ThemeResource ApplicationPageBackgroundThemeBrush}">
        <DatePicker x:Name="datePicker"
                    HorizontalAlignment="Left"
                    VerticalAlignment="Top"
                    Margin="136,85,0,0" />
        <TextBlock HorizontalAlignment="Left"
                   TextWrapping="Wrap"
                   Text="{Binding Date, Converter={StaticResource DateFormat},
                                   ElementName=datePicker}"
                   VerticalAlignment="Top"
                   Margin="136,164,0,0"
                   FontSize="64"
                   Foreground="Red" />
        <TextBlock HorizontalAlignment="Left"
                   TextWrapping="Wrap"
                   Text="{Binding Date, Converter={StaticResource UppercaseDateFormat},
                                   ElementName=datePicker}"
                   VerticalAlignment="Top"
                   Margin="136,283,0,0"
                   FontSize="64"
                   Foreground="Blue" />
    </Grid>
</Page>

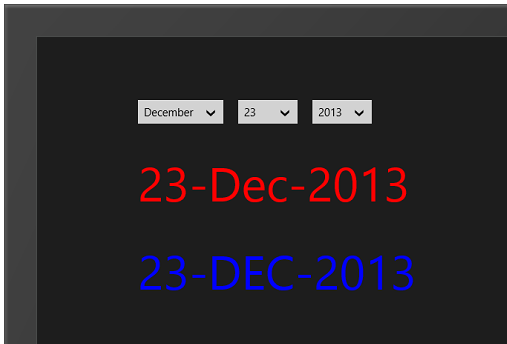

As you can see in the next screenshot the blue TextBlock is showing the date in a dd-MMM-yyyy format in uppercase.

CombiningConverters

FormatConverter

The code of the FormatConverter class used in the example.

using System;
using System.Globalization;
using Windows.UI.Xaml.Data;

namespace ReflectionIT.Windows8.Converters {

    public class FormatConverter : IValueConverter {

        public string FormatString { get; set; }

        public object Convert(object value, Type typeName, object parameter,
                                   string language) {

            string formatterString = (parameter as String) ?? FormatString;

            if (!string.IsNullOrEmpty(formatterString)) {
                return string.Format(formatterString, value);
            }

            return System.Convert.ToString(value);
        }

        public object ConvertBack(object value, Type typeName, object parameter,
                                  string language) {
            System.Diagnostics.Debugger.Break(); // Not Implemented
            throw new NotImplementedException();
        }

    }
}

UppercaseConverter

The code of the UppercaseConverter class used in the example.

using System;
using Windows.UI.Xaml.Data;

namespace ReflectionIT.Windows8.Converters {

    class UppercaseConverter : IValueConverter {
        public object Convert(object value, Type targetType, object parameter,
                                   string language) {
            return System.Convert.ToString(value).ToUpper();
        }

        public object ConvertBack(object value, Type targetType, object parameter,
                                   string language) {
            System.Diagnostics.Debugger.Break(); // Not Implemented
            throw new NotImplementedException();
        }
    }
}



Closure and download

I hope you like my solution. Combining multiple converters is now very easy. You can download my code below.

Cheers,

Fons
