InitialFocus on a ASP.NET WebForm

By Fons Sonnemans, 28-4-2004

Download InitialFocusDemo.zip

Introduction

The PageUtil class has a static method SetInitialFocus(control) which can be used to generate a JavaScript for an ASP.NET page (WebForm), which sets the focus on a (given) control.

        private voidPage_Load(objectsender, System.EventArgs e)
        {
            // Set the InitialFocus on TextBox1
            ReflectionIT.Web.PageUtil.SetInitialFocus(TextBox1);
        }

TextBox1:

PageUtil Class

using System;
using System.Text;
using System.Web.UI;
using System.Web.UI.WebControls;

namespace ReflectionIT.Web {
    /// <summary>
    /// Utility class for a ASP.NET page
    ///
    /// Be sure to notice that this code is provided as a technology sample,
    /// 'as is' and no warranties are made by the author.
    ///
    /// For questions and comments: Fons.Sonnemans@reflectionit.nl
    ///
    /// </summary>
    public class PageUtil {

        /// <summary>
        /// Set the InitialFocus to the given control. Only works when JavaScript is supported.
        /// </summary>
        /// <param name="control">Control to set the InitialFocus on.</param>
        publicstaticvoid SetInitialFocus(Control control){
            // Postpone setting the InitialFocus to the PreRender event of the control.
            // The control might not yet have a Page property, in PreRender it always has!
            control.PreRender += new EventHandler(InitialFocusControl_PreRender);
        }

        /// <summary>
        /// Set the InitialFocus to the control that notified this EventHandler (sender)
        /// </summary>
        /// <param name="sender">The source of the event. </param>
        /// <param name="e">An EventArgs that contains the event data. </param>
        privatestaticvoid InitialFocusControl_PreRender(object sender, EventArgs e){
            Control control=senderas Control;

            if(control.Page == null){
                thrownew ArgumentException(
                    "The Control must be added to a Page before you can set the IntialFocus to it.");
            }
            if(control.Page.Request.Browser.JavaScript ==true) {
                // Create JavaScript
                StringBuilder s =new StringBuilder();
                s.Append("\n<SCRIPT LANGUAGE='JavaScript'>\n");
                s.Append("<!--\n");
                s.Append("function SetInitialFocus()\n");
                s.Append("{\n");
                s.Append(" document.");

                // Find the Form
                Control p =control.Parent;
                while(!(p is System.Web.UI.HtmlControls.HtmlForm))
                    p = p.Parent;
                s.Append(p.ClientID);

                s.Append("['");
                s.Append(control.UniqueID);

                // Set Focus on the selected item of a RadioButtonList
                RadioButtonList rbl= controlas RadioButtonList;
                if(rbl!= null){
                    stringsuffix ="_0";
                    int t = 0;
                    foreach(ListItem liinrbl.Items){
                        if(li.Selected) {
                            suffix= "_"+ t.ToString();
                            break;
                        }
                        t++;
                    }
                    s.Append(suffix);
                }

                // Set Focus on the first item of a CheckBoxList
                if(controlis CheckBoxList){
                    s.Append("_0");
                }

                s.Append("'].focus();\n");
                s.Append("}\n");

                if(control.Page.SmartNavigation)
                    s.Append("window.setTimeout(SetInitialFocus, 500);\n");
                else
                    s.Append("window.onload = SetInitialFocus;\n");

                s.Append("// -->\n");
                s.Append("</SCRIPT>");

                // Register Client Script
                control.Page.RegisterClientScriptBlock("InitialFocus", s.ToString());
            }
        }
    }
}

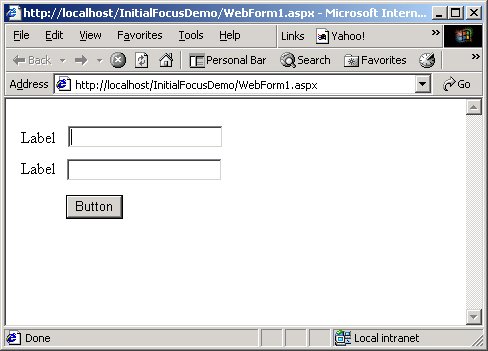

Example

Textbox1 has the focus after the page is loaded.

 WebForm1.aspx

<%@ Page language="c#" Codebehind="WebForm1.aspx.cs" AutoEventWireup="false" Inherits="InitialFocusDemo.WebForm1"smartNavigation="False"%>
<!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.0 Transitional//EN" >
<HTML>
    <HEAD>
        <metacontent="Microsoft Visual Studio 7.0"name="GENERATOR">
        <metacontent="C#"name="CODE_LANGUAGE">
        <metacontent="JavaScript (ECMAScript)"name="vs_defaultClientScript">
        <metacontent="http://schemas.microsoft.com/intellisense/ie5"name="vs_targetSchema">
    </HEAD>
    <body>
        <formid="Form1"method="post"runat="server">
            <table>
                <tr>
                    <td>
                        <asp:labelid="Label1"runat="server">Label</asp:label>
                    </td>
                    <td>
                        <asp:textboxid="TextBox1"runat="server"></asp:textbox>
                    </td>
                </tr>
                <tr>
                    <td>
                        <asp:labelid="Label2"runat="server">Label</asp:label>
                    </td>
                    <td>
                        <asp:textboxid="TextBox2"runat="server"></asp:textbox>
                    </td>
                </tr>
                <tr>
                    <td>
                    </td>
                    <td>
                        <asp:Button id="Button1"runat="server" Text="Button"></asp:Button>
                    </td>
                </tr>
            </table
        </form>
    </body>
</HTML>

 WebForm1.aspx.cs

using System;
using System.Collections;
using System.ComponentModel;
using System.Data;
using System.Drawing;
using System.Web;
using System.Web.SessionState;
using System.Web.UI;
using System.Web.UI.WebControls;
using System.Web.UI.HtmlControls;

namespace InitialFocusDemo
{
    /// <summary>
    /// Summary description for WebForm1.
    /// </summary>
    public class WebForm1: System.Web.UI.Page
    {
        protected System.Web.UI.WebControls.Label Label1;
        protected System.Web.UI.WebControls.Label Label2;
        protected System.Web.UI.WebControls.TextBox TextBox1;
        protected System.Web.UI.WebControls.Button Button1;
        protected System.Web.UI.WebControls.TextBox TextBox2;

        public WebForm1()
        {
            Page.Init +=new System.EventHandler(Page_Init);
        }

        privatevoid Page_Load(objectsender, System.EventArgs e)
        {
            // Set the InitialFocus on TextBox1
            ReflectionIT.Web.PageUtil.SetInitialFocus(TextBox1);
        }

        privatevoid Page_Init(objectsender, EventArgs e)
        {
            //
            // CODEGEN: This call is required by the ASP.NET Web Form Designer.
            //
            InitializeComponent();
        }

        #region Web Form Designer generated code
        /// <summary>
        /// Required method for Designer support - do not modify
        /// the contents of this method with the code editor.
        /// </summary>
        privatevoid InitializeComponent()
        {
            this.Load +=new System.EventHandler(this.Page_Load);

        }
        #endregion

    }
}

Thanks to:

  • Philip Quirke who reported a bug in an earlier version. I used the controls 'UniqueID' property instead of 'ClientID' in the SetInitialFocus() method.
  • S Patil who reported that it didn't work with Netscape 4.7x browser. I have therfore changed the JavaScript.
  • Scott Dinwiddie who reported the SmartNavigation problem.
  • Waylon Campbell who reported the RadioButtonList problem.

Any suggestions and feedback for improving this article is most welcome. Send your suggestions and feedback to Fons.Sonnemans@reflectionit.nl
