Paging in ASP.NET Core MVC and EntityFramework Core

1 Comments
By Fons Sonnemans, 29-3-2017

Paging, sorting and filtering are common features in websites. Microsoft has written a tutorial how to implement these features in ASP.NET Core MVC with Entity Framework Core. The described solution works but I found it a bit too primitive. It triggered me to create a more powerful solution. Before you can start using my solution you should first read this tutorial, it explains how you can add Entity Framework Core to an ASP.NET Core MVC application.

Project Setup

My WebApplication is an ASP.NET Core Web Application (version 1.1) which uses EntityFramework Core 1.1. I use a commonly used Northwind SQL Server sample database which I created using the following tutorial. I have scaffold the Northwind database and created the controllers for the Suppliers and Products. Read this tutorial to learn how. I have added some extra navigation hyperlinks in the _Layout.cshtml file for the SuppliersController and ProductsController (Action Index).

The Index.cshtml file from the Views/Suppliers folder looks like this. I made some small adjustments like changing the h2 to an h1 and renaming the text 'Index' to 'Suppliers'. The most obvious change is that I removed some of the columns from the table to make it less wide.

@model IEnumerable<WebApplication8.Models.Database.Suppliers>

@{
    ViewData["Title"] = "Suppliers";
}

<h1>Suppliers</h1>

<p>
    <a asp-action="Create">Create New</a>
</p>
<table class="table table-striped">
    <thead>
        <tr>
            <th>
                @Html.DisplayNameFor(model => model.CompanyName)
            </th>
            <th>
                @Html.DisplayNameFor(model => model.ContactName)
            </th>
            <th>
                @Html.DisplayNameFor(model => model.Address)
            </th>
            <th>
                @Html.DisplayNameFor(model => model.City)
            </th>
            <th></th>
        </tr>
    </thead>
    <tbody>
        @foreach (var item in Model) {
            <tr>
                <td>
                    @Html.DisplayFor(modelItem => item.CompanyName)
                </td>
                <td>
                    @Html.DisplayFor(modelItem => item.ContactName)
                </td>
                <td>
                    @Html.DisplayFor(modelItem => item.Address)
                </td>
                <td>
                    @Html.DisplayFor(modelItem => item.City)
                </td>
                <td>
                    <a asp-action="Edit" asp-route-id="@item.SupplierId">Edit</a> |
                    <a asp-action="Details" asp-route-id="@item.SupplierId">Details</a> |
                    <a asp-action="Delete" asp-route-id="@item.SupplierId">Delete</a>
                </td>
            </tr>
        }
    </tbody>
</table>

When you browse for the Suppliers Index page (http://localhost:2309/Suppliers) you get the following output. It shows you all suppliers and that list can be very long. Let's add Paging so we can limit the number of suppliers in the list.

Adding Paging

In the earlier mentioned tutorial a PaginatedList<T> class was used. My solution uses a similar approach but I named it PagingList<T>. This class and some other helper classes are packed in a NuGet package named ReflectionIT.Mvc.Paging. You can install the package using the NuGet browser in Visual Studio or by running the 'Install-Package ReflectionIT.Mvc.Paging' command from the Package Manager Console.

After installation you can add the paging services in the ConfigureServices() method of the Startup class. Add the services.AddPaging() call as shown below. This call will register an EmbeddedFileProvider which is used for rendering the View for the Pager ViewComponent. The View will be loaded from the ReflectionIT.Mvc.Paging assembly if it can not be found in your WebApplication.

public void ConfigureServices(IServiceCollection services)
{
    services.AddEntityFramework()
        .AddEntityFrameworkSqlServer()
        .AddDbContext<Models.Database.NorthwindContext>(options =>
            options.UseSqlServer(Configuration["Data:Northwind:ConnectionString"]));

    // Add framework services.
    services.AddMvc();

    services.AddPaging();
}

Next I modified the Index() method from the SuppliersController class. I added an optional 'page' parameter with the default value 1. I defined a query in which I retrieve the Suppliers from the context (NorthwindContext) with the AsNoTracking() method and an OrderBy(). The AsNoTracking() turns off change tracking which improves the performance. The OrderBy() is required to support Paging (Skip() & Take()) in EF. This query is used to create the PagingList. The page size is set to 10. This is the model which is passed to the View. The PagingList will fetch the data from the database asynchronously.

// GET: Suppliers
//public async Task<IActionResult> Index() {
//    return View(await _context.Suppliers.ToListAsync());
//}

public async Task<IActionResult> Index(int page = 1) {
    var qry = _context.Suppliers.AsNoTracking().OrderBy(p => p.CompanyName);
    var model = await PagingList<Suppliers>.CreateAsync(qry, 10, page);
    return View(model);
}

The Index.cshtml view must also be modified. I changed the model type (line 1), added a using (line 2) and an addTagHelper (line 3). Lines 2 and 3 could also be moved to the _ViewImports.cshtml file which would add these lines to every view. I also added a Pager above the table. This is done by invoking the Pager View Component and passing the Model as the pagingList. It is placed inside a <nav> element with an aria-label which is used by screen readers. I have done the same below the <table> but there I used a new feature of ASP.NET Core 1.1. The View Component is invoked as a Tag Helper. It uses the <vc /> element and the class and parameters are translated to lower kebab case.  For more info read this article.

@model ReflectionIT.Mvc.Paging.PagingList<WebApplication8.Models.Database.Suppliers>
@using ReflectionIT.Mvc.Paging
@addTagHelper *, ReflectionIT.Mvc.Paging

@{
    ViewData["Title"] = "Suppliers";
}

<h2>Suppliers</h2>

<nav aria-label="Suppliers navigation example">
    @await this.Component.InvokeAsync("Pager", new { pagingList = this.Model })
</nav>

<p>
    <a asp-action="Create">Create New</a>
</p>
<table class="table table-striped">
   ...
</table>

<nav aria-label="Suppliers navigation example">
    <vc:pager paging-list="@Model" />
</nav>

This results in the following view in which you see two pagers which use bootstrap markup.



Adding Sorting

For sorting I added an extra sortExpression parameter to the Index() method of the SuppliersController class. The parameter is optional and uses the CompanyName as the default sort expression in case none is supplied. The OrderBy() method is removed from the query because the PagingList will take care of the ordering. The sortExpression and the default sort expression are now required to create the PageList model.

public async Task<IActionResult> Index(int page = 1,
                                       string sortExpression = "CompanyName") {

    var qry = _context.Suppliers.AsNoTracking();
    var model = await PagingList<Suppliers>.CreateAsync(
                            qry, 10, page, sortExpression, "CompanyName");
    return View(model);
}

In the View I modified the header of the table. I replaced the DisplayNameFor() calls by SortableHeaderFor() calls. I pass the Model as an extra parameter. This is not required but if you do you will get nice Up and Down indicators (glyphs) in the headers when you sort ascending or descending. You can also specify the SortColumn if you want a different one as the model property. In this example I used this for the City column. There I added the CompanyName as a second column to sort on.

<table class="table table-striped">
    <thead>
        <tr>
            <th>
                @Html.SortableHeaderFor(model => model.CompanyName, this.Model)
            </th>
            <th>
                @Html.SortableHeaderFor(model => model.ContactName, this.Model)
            </th>
            <th>
                @Html.SortableHeaderFor(model => model.Address, this.Model)
            </th>
            <th>
                @Html.SortableHeaderFor(model => model.City, "City, CompanyName", this.Model)
            </th>
            <th></th>
        </tr>
    </thead>

This results in the following view in which you can sort the table by clicking the headers of the columns. An up or down indicator shows you weather you are sorting ascending or descending.

Adding Filtering

To show filtering I will switch to the Products table, it has more records. The Index() method of the ProductsController has a filter parameter (besides page and sortExpression). The query is defined with an extra AsQueryable() method call. This method returns the the type IQueryable<Products>. This allowed me to append an extra Where "clause" to it when the filter is not empty.  In this example I used a Contains() which translates to a like '%...%' condition.

You have to set the RouteValue property of the model with all conditions used in the filter. This is used to build the correct URL in the pager and table headers.

public async Task<IActionResult> Index(string filter, int page = 1,
                                       string sortExpression = "ProductName") {

    var qry = _context.Products.AsNoTracking()
        .Include(p => p.Category)
        .Include(p => p.Supplier)
        .AsQueryable();

    if (!string.IsNullOrWhiteSpace(filter)) {
        qry = qry.Where(p => p.ProductName.Contains(filter));
    }

    var model = await PagingList<Products>.CreateAsync(
                                 qry, 10, page, sortExpression, "ProductName");

    model.RouteValue = new RouteValueDictionary {
        { "filter", filter}
    };

    return View(model);
}

I added a form in the Index.cshtml with an input named filter and a submit button which has the method set to GET. This will execute the Index action of the controller.

@model ReflectionIT.Mvc.Paging.PagingList<WebApplication8.Models.Database.Products>
@using ReflectionIT.Mvc.Paging
@addTagHelper *, ReflectionIT.Mvc.Paging

@{
    ViewData["Title"] = "Products";
}

<h2>Products</h2>

<p>
    <a asp-action="Create">Create New</a>
</p>

<form method="get" class="form-inline">
    <input name="filter" class="form-control" placeholder="filter"
           value="@Model.RouteValue["Filter"]" />
    <button type="submit" class="btn btn-info">
        <span class="glyphicon glyphicon-search" aria-hidden="true"></span> Search
    </button>
</form>

<nav aria-label="Products navigation example">
    <vc:pager paging-list="@Model" />
</nav>

<table class="table table-striped">
    <thead>
        <tr>
            <th>
                @Html.SortableHeaderFor(model => model.ProductName, this.Model)
            </th>
            <th>
                @Html.SortableHeaderFor(model => model.Supplier.CompanyName,
                               "Supplier.CompanyName, ProductName", this.Model)
            </th>
            <th>
                @Html.SortableHeaderFor(model => model.Category.CategoryName,
                              "Category.CategoryName, ProductName", this.Model)
            </th>
            <th>
                @Html.SortableHeaderFor(model => model.UnitPrice, this.Model)
            </th>
            <th></th>
        </tr>
    </thead>
    <tbody>

This results in the following view in which you can filter on ProductName and you have paging and sorting.

Customize

You can customize this solutions in a few ways. You can for instance call the AddPaging method which you can use to set the PagingOptions. This allows you to specify which View is used for the Pager ViewComponent. By default a pager based on Bootstrap3 is used. But there is also already a Bootstrap4 view available. Bootstrap4 doesn't support glyphs any more so if you switch to it you also have to specify alternatives for the Up/Down indicators used in the sortable headers of the table.

services.AddPaging(options => {
    options.ViewName = "Bootstrap4";
    options.HtmlIndicatorDown = " <span>&darr;</span>";
    options.HtmlIndicatorUp = " <span>&uarr;</span>";
});

You can also create your own Pager view if you want to. You store it in the folder Views\Shared\Components\Pager. The easiest way to create a custom view is by coping the default Bootstrap3.cshtml from Github. You can remove the Bootstrap classes and add your own or you can generate your own html buttons.

You can also render the Pager using the Html.Partial() Html Helper instead of using the Pager ViewComponent. The following snippet shows the 'SmallPager.cshtml' which I stored in the Views/Shared folder. When you store it in this folder you can access it from all views.

<nav aria-label="Products navigation example">
    @Html.Partial("SmallPager", this.Model)
</nav>

Closure

You can download my sample app using the Download button below. I have published the code of the Pager on GitHub. It also contains a sample webapp which uses Bootstrap4. It's open source. So if you create a better pager please do a pull-request.

Fons



Hooray!

0 Comments
By Fons Sonnemans, 19-2-2006

I have just received mail from Pearson VUE informing me that have passed the Beta Exam 70-528 TS: Microsoft .NET Framework 2.0 - Web-Based Client Development (called 71-528 while it's in Beta). I also received a free Voucher for a next exam, thanks guys.

On Friday I will try the Beta Exam 70-551 UPGRADE: MCAD Skills to MCPD Web Developer by Using the Microsoft .NET Framework. One week later I will try the Beta Exam70-552 UPGRADE: MCAD Skills to MCPD Windows Developer by Using the Microsoft .NET Framework . Wish me luck.

Tags: CSharp, Framework

Microsoft has put my 'Dual List' .NET Magazine article online!

0 Comments
By Fons Sonnemans, 9-4-2005


Microsoft has put my Visueel programmeren met .NET: Dual List Control article online. It is published in the .NET Magazine #8 and it is free for Dutch developers.
They didn't publish the sourcecode (yet) but you can download it from my own site. The aricle is in Dutch. You can find an (old) English version of this article here. An even more advanced implementation that also supports Drag & Drop can be found here.

WaitCursor

0 Comments
By Fons Sonnemans, 10-2-2005

For a long time I thought that I only had to set the Cursor.Current to a WaitCursor before a long running operation, the .NET runtime would reset it back to the Default cursor. Turns out that this is only true when the mouse is moved. Bummer.

// Cursor.Current are automatically reset to Default when the
// mouse is moved and the application is idle!
Cursor.Current = Cursors.WaitCursor;

The solution for this problem is very easy. I created a helper class called WaitCursor which set the Cursor.Current and restores it to the original value when it it disposed.

public sealed class WaitCursor : IDisposable {
    private Cursor _prev;

    public WaitCursor() {
        _prev = Cursor.Current;
        Cursor.Current = Cursors.WaitCursor;
    }

    public void Dispose() {
        Cursor.Current = _prev;
    }
}

I create the instance of the WairCursor class inside a using statement. This will automatically call the Dispose() method when it goes out of scope.

using (new WaitCursor()) {
    // long running operation, for example:
    System.Threading.Thread.Sleep(1000);
}

Afterwards I did some searching around on the web. Turns out I'm not the first to come up with this solution. Charlie Poole already posted it a few years ago. Another bummer.

Dispose Modal WinForm Dialogs

0 Comments
By Fons Sonnemans, 12-12-2004

There is a difference in disposing Modal and Non-Modal forms. In a training I gave last week I noticed that even experienced developers didn't know that Modal Dialogs don't dispose automatically, Non-Modal do.

private void buttonShowNonModalForm(object sender, System.EventArgs e) {
    new TestForm().Show();
}

private void buttonShowModalDialog(object sender, System.EventArgs e) {
    new Form2().ShowDialog();
}

The solution to this problem is very simple by creating the Form instance within a using block. This will dispose the Form when it is closed.

private void buttonShowModalDialog(object sender, System.EventArgs e) {
    using (TestForm f = new TestForm()) {
        f.ShowDialog();
    }
}

An alternative solution uses a try/finnaly. Personally I prefer the previous, it is easier to read and write.

private void buttonShowModalDialog(object sender, System.EventArgs e) {
    TestForm f = null;
    try {
        f = new TestForm();
        f.ShowDialog();
    } finally {
        if (f != null) {
            f.Dispose();
        }
    }
}

The following solution isn't correct. You might think it is, but it isn't. The Dispose will not be executed when an Exception is thrown from within the ShowDialog().

private void buttonShowModalDialog(object sender, System.EventArgs e) {
    TestForm f = new TestForm();
    f.ShowDialog();
    f.Dispose();
}

DualList Drag & Drop Component

0 Comments
By Fons Sonnemans, 16-9-2004

Introduction

I have written an article two years ago with the title 'WinForm DualList Component'. In this article I mentioned the desire to extend the DualList component with Drag & Drop support. Finally it's done. Not by extending the original DualList component but by creating an new DualListDragDrop component (reason: cohesion).

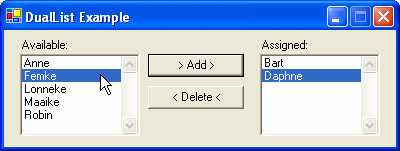

Programming Drag & Drop (D&D) between listboxes is quite difficult. It requires at least 60 lines of code for every two listboxes. Therefore not many application support D&D. This component eliminates need of writing the code. You only have to set properties on it. Making it easy to support D&D in your applications.

DualListDragDrop Component

The DualListDragDrop component is a component which can be dropped in the 'component tray' of a windows Form. You therefore first have to add it to the Toolbox of Visual Studio.NET. This can easily be done by dragging   ReflectionITWinFormComponents.dll assembly from an normal Windows Explorer and dropping it on the Toolbox. All controls and components from the assembly will be added to the Toolbox. You can create an separate Tab for it if you want.

For each D&D direction you must add DualListDragDrop component to you Form. In this example three. For each component you have to set the '(Name)', 'ListBoxFrom' and 'ListBoxTo' properties.



You can use the DualListDragDrop component to reorder the position of the items in a ListBox by selecting the same 'From' and 'To' ListBox.

Action property

You can choose from three values for the Action property: Move, Copy and MoveAndCopy. The MoveAndCopy will normally move an item. You can copy the item by pressing the Ctrlkey while initiating the D&D operation.

DropIndicator property

The DropIndicator can be set to 'True' which means you will get a red dotted line indicating where the item will be placed when you drop the item. It supports scrolling the listbox up and down when you move your mouse over the first or last visible item. The item will be added to the bottom of the list when the property is set to 'False'. The color of the line can be selected using the IndicatorColor property.

Conclusion

The DualList and DualListDragDrop components are easy solutions for difficult features. It takes care of all logic needed to move and or copy items from one listbox to another. Use them in your own applications, they are free.

Hopefully this article will encourage more people to make use of the component architecture in their own applications.

Any suggestions and feedback for improving this article is most welcome. Send your suggestions and feedback to Fons.Sonnemans@reflectionit.nl

License Information

The ReflectionITWinFormComponents assembly is free for use in commercial or private applications. However, you may only redistribute this in its compiled form (modified or unmodified), you may not redistribute the source or modified source. When using it, please include the line "ReflectionITWinFormComponents - Copyright Reflection IT - http://www.reflectionit.nl/" reference in either the about or in the documentation. This will help me out and allow me to continue to provide you with free controls.

ToolboxBitmap workaround

0 Comments
By Fons Sonnemans, 3-9-2004

I have found a solution for a problem which I had for a long time. I was unable to set the ToolboxBitmap attribute for a component using the (type, string) constructor. I found the solution for this problem (using an internal ResFinder class) on www.bobpowell.net. This site has also some other Windows Forms Tips and Tricks. Great!

System.Collections and System.Collections.Specialized

0 Comments
By Fons Sonnemans, 8-3-2004

This table gives you an overview of all collections in the System.Collections and System.Collections.Specialized namespaces.

Class Key Value Remarks
System.Array   ? Predefined size, used for passing data around.
ArrayList   Object Easy to work with, provides basic collection functionality and can easily be converted to an Array.
BitArray   Boolean
Manages a compact array of bit values, which are represented as Booleans
CollectionBase   ? Abstract base for building your own collection classes.
DictionaryBase Object ? Abstract base for building your own collection classes using a key-value pair.
HashTable Object Object Provides high performance access to items in the key-value pair collection, by a specific key.
Queue   Object Implements the FIFO mechanism.
ReadOnlyCollectionBase   Object Abstract base for building your own read-only collection classes.
SortedList Object (sorted) Object Provides access to items in the collection by a specific key or an index (GetByIndex(int)).
Stack   Object Implements the LIFO mechanism.
Specialized.HybridDictionary
Object Object Uses internally a ListDictionary class when the collection is small, and switches automatically to a Hashtable class when the collection gets large.
Specialized.ListDictionary Object Object Is designed to be used for collections with 10 or less items, while the Hashtable is designed to contain more items.
Specialized.NameObjectCollectionBase String ? Abstract base for building your own collection classes using a key-value pair.
Specialized.NameValueCollection String (sorted) String NameValueCollection class is the strong type equivalent of the SortedList class, for the String class.
Specialized.StringCollection   Object Strongly typed ArrayList for the String class.
Specialized.StringDictionary String String Strongly typed Hashtable for the String class, not sorted.

Read also Jan Tielens article on the MSDN Belux website.

EventsHelper using Fire and Forget

0 Comments
By Fons Sonnemans, 7-3-2004

I have used the EventsHelper class to fire events asynchronical. I came across this class in the TechEd 2003 presentation C# Best Practices from Eric Gunnerson and Juval Löwy. Today I noticed a bug. The FireAsync() method uses the 'Fire and Forget' pattern incorrectly.

The 'Fire and Forget' pattern is used when the return value and returned parameters of the call are not required, and when there is no need to synchronize with the asynchronously executing method. In this case, the caller simply needs to call BeginInvoke, passing any normal and ref parameters, and null for the callback and asyncState.

This has been a commonly used pattern. However, there has been a documentation change in version 1.1 of the .NET Framework that has big ramifications for this technique of making async calls. The documentation now states that EndInvoke must be called for a corresponding BeginInvoke--otherwise Microsoft say they may now, or in the future, leak resources. It appears that no resources are leaked under version 1.0 of the framework; however, with this type of warning in place, it is recommended that a call to EndInvoke be made even if the return values of an async call are not required.

It is relatively straightforward to create a helper class that handles this for you--one example I found here.

public class AsyncHelper {

    delegate void DynamicInvokeShimProc(Delegate d, object[] args);

    static DynamicInvokeShimProc dynamicInvokeShim = new
        DynamicInvokeShimProc(DynamicInvokeShim);

    static AsyncCallback dynamicInvokeDone = new
        AsyncCallback(DynamicInvokeDone);

    public static void FireAndForget(Delegate d, params object[] args) {
        dynamicInvokeShim.BeginInvoke(d, args, dynamicInvokeDone, null);
    }

    static void DynamicInvokeShim(Delegate d, object[] args) {
        d.DynamicInvoke(args);
    }

    static void DynamicInvokeDone(IAsyncResult ar) {
        dynamicInvokeShim.EndInvoke(ar);
    }
}

My improved EventsHelper class now looks like this:

public class EventsHelper {

    public static void FireAsync(Delegate del, params object[] args) {
        if (del == null) {
            return;
        }
        Delegate[] delegates = del.GetInvocationList();
        AsyncFire asyncFire;
        foreach (Delegate sink in delegates) {
            asyncFire = new AsyncFire(InvokeDelegate);
            AsyncHelper.FireAndForget(asyncFire, sink, args);
        }
    }

    delegate void AsyncFire(Delegate del, object[] args);

    [OneWay]
    static void InvokeDelegate(Delegate del, object[] args) {
        del.DynamicInvoke(args);
    }

    public static void Fire(Delegate del, params object[] args) {
        if (del == null) {
            return;
        }
        Delegate[] delegates = del.GetInvocationList();
        foreach (Delegate sink in delegates) {
            try {
                sink.DynamicInvoke(args);
            }
            catch {}
        }
    }
}

DateDiff() function in C#

4 Comments
By Fons Sonnemans, 11-2-2004

I have written the following DateDiff() function in C#. VB.NET users already had it using the Micrsoft.VisualBasic.dll assembly. Now you can use it without referencing this 'ugly' extra assembly.

using System;


namespace ReflectionIT.System {

    public enum DateInterval {
        Year,
        Month,
        Weekday,
        Day,
        Hour,
        Minute,
        Second
    }

    public class DateTimeUtil {

        public static long DateDiff(DateInterval interval, DateTime date1, DateTime date2) {

            TimeSpan ts = date2 - date1;

            switch (interval) {
                case DateInterval.Year:
                    return date2.Year - date1.Year;
                case DateInterval.Month:
                    return (date2.Month - date1.Month) + (12 * (date2.Year - date1.Year));
                case DateInterval.Weekday:
                    return Fix(ts.TotalDays) / 7;
                case DateInterval.Day:
                    return Fix(ts.TotalDays);
                case DateInterval.Hour:
                    return Fix(ts.TotalHours);
                case DateInterval.Minute:
                    return Fix(ts.TotalMinutes);
                default:
                    return Fix(ts.TotalSeconds);
            }
        }

        private static long Fix(double Number) {
            if (Number >= 0) {
                return (long)Math.Floor(Number);
            }
            return (long)Math.Ceiling(Number);
        }
    }
}


All postings/content on this blog are provided "AS IS" with no warranties, and confer no rights. All entries in this blog are my opinion and don't necessarily reflect the opinion of my employer or sponsors. The content on this site is licensed under a Creative Commons Attribution By license.
